Product Summary

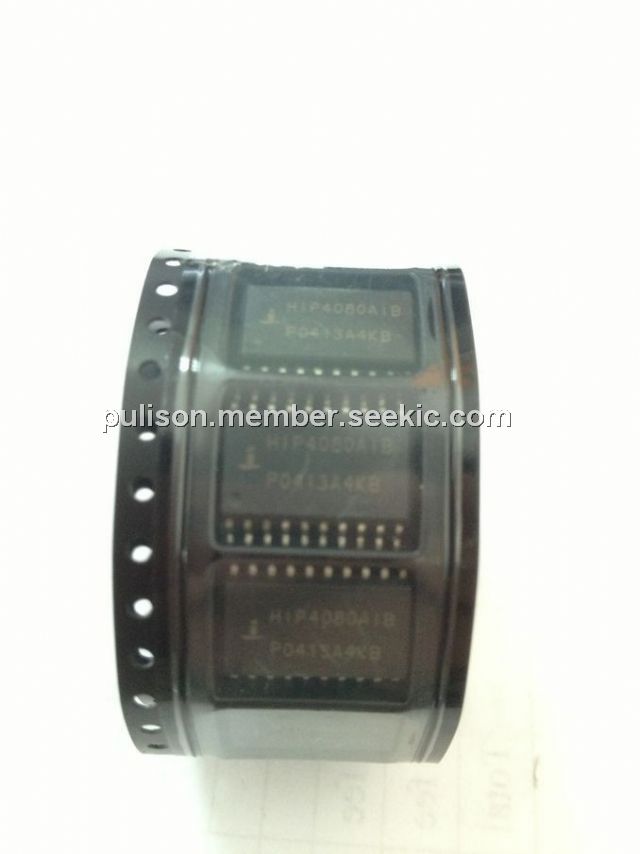

The HIP4080AIB is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4080AIB includes an input comparator, used to facilitate the hysteresis and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. Since it can switch at frequencies up to 1MHz, the HIP4080AIB is well suited for driving Voice Coil Motors, switching power amplifiers and power supplies. The applications of the HIP4080AIB are (1)Medium/Large Voice Coil Motors; (2)Full Bridge Power Supplies; (3)Switching Power Amplifiers; (4)High Performance Motor Controls; (5)Noise Cancellation Systems; (6)Battery Powered Vehicles; (7)Peripherals; (8)U.P.S.
Parametrics
HIP4080AIB absolute maximum ratings: (1)Supply Voltage, VDD and VCC: -0.3V to 16V; (2)Logic I/O Voltages: -0.3V to VDD +0.3V; (3)Voltage on AHS, BHS: -6.0V (Transient) to 80V (25 to 125℃); (4)Voltage on AHS, BHS: -6.0V (Transient) to 70V (-55 to 125℃); (5)Voltage on ALS, BLS: -2.0V (Transient) to +2.0V (Transient); (6)Voltage on AHB, BHB: VAHS, BHS -0.3V to VAHS, BHS +VDD; (7)Voltage on ALO, BLO: VALS, BLS -0.3V to VCC +0.3V; (8)Voltage on AHO, BHO: VAHS, BHS -0.3V to VAHB, BHB +0.3V; (9)Input Current, HDEL and LDEL: -5mA to 0mA; (10)Phase Slew Rate: 20V/ns.
Features
HIP4080AIB features: (1)Drives N-Channel FET Full Bridge Including High Side Chop Capability; (2)Bootstrap Supply Max Voltage to 95VDC; (3)Drives 1000pF Load at 1MHz in Free Air at +50℃ with Rise and Fall Times of Typically 10ns; (4)User-Programmable Dead Time; (5)Charge-Pump and Bootstrap Maintain Upper Bias Supplies; (6)DIS (Disable) Pin Pulls Gates Low; (7)Input Logic Thresholds Compatible with 5V to 15V Logic Levels; (8)Very Low Power Consumption; (9)Undervoltage Protection; (10)Pb-Free Available as an Option.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP4080AIB |
Intersil |
Power Driver ICs 60-80 VDC HI FREQ H- BRDG DRIVER |
Data Sheet |
|
|
||||||||||||
|
HIP4080AIBT |
Intersil |
Power Driver ICs HIP4080AIB |
Data Sheet |
|
|
||||||||||||
|
HIP4080AIBZ |
Intersil |
Power Driver ICs VERSION OF HIP4080AI B |
Data Sheet |
|
|
||||||||||||
|
HIP4080AIBZT |
Intersil |
Power Driver ICs VERSION OF HIP4080AI BT |
Data Sheet |
|
|
||||||||||||
