Product Summary

 M74HC165 is an high speed CMOS 8 BITPISO SHIFT REGISTER fabricated with silicongate C2MOS technology.This device contains eight clocked master slaveRS flip-flops connected as a shift register, withauxiliarygatingtoprovideover-ridingasynchronous parallel entry. Parallel data enterswhen the shift/load input is low. The parallel datacan change while shift/load is low, provided thatthe recommended set-up and hold times areobserved. For clocked operation, shift/load mustbe

Features

The two clock input perform identically;one can be used as a clock inhibit by applying ahigh signal; to permit this operation clocking isaccomplished through a 2 input nor gate.To avoid double clocking, however, the inhibitsignal should only go high while the clock is high.Otherwise the rising inhibit signal will cause thesame response as rising clock edge.All inputs are equipped with protection circuitsagainst static discharge and transient excessvoltage.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

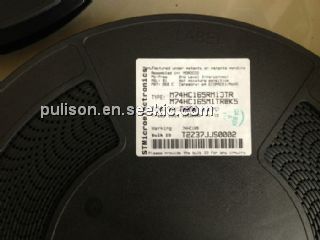

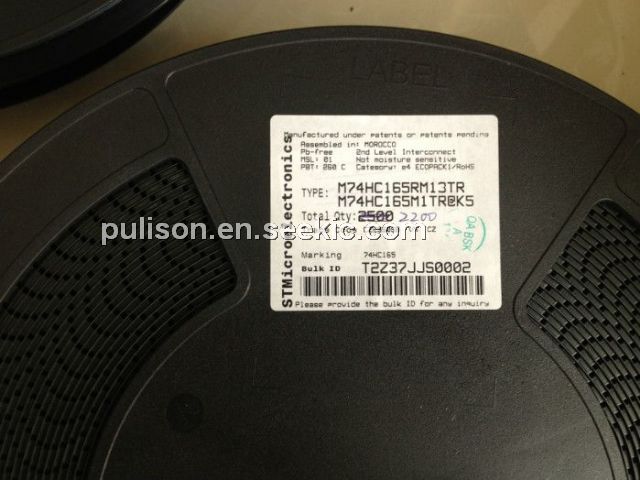

M74HC165RM13TR
M74HC165RM13TR

STMicroelectronics

Counter Shift Registers 8-Bit PISO Shift Reg

Data Sheet

0-1: $0.36
1-10: $0.31
10-100: $0.23
100-250: $0.20
