Product Summary

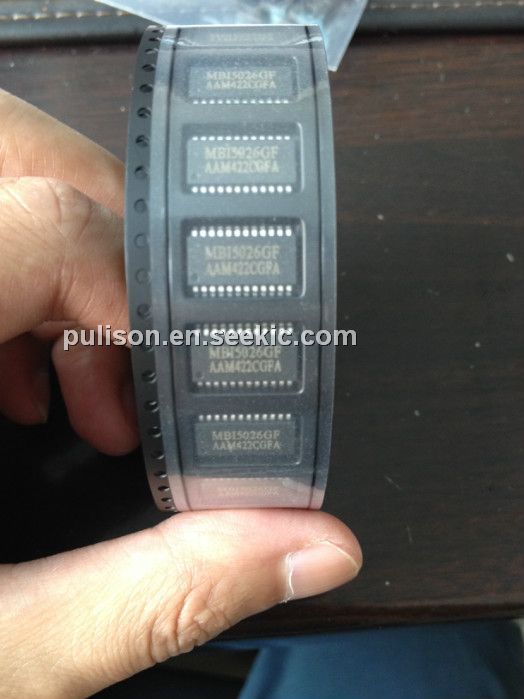

DescriptionMBI5026 is designed for LED displays. As an enhancement of its predecessor, MBI5016, MBI5026 exploitsPrecisionDrive? technology to enhance its output characteristics. MBI5026 contains a serial buffer and datalatches which convert serial input data into parallel output format. At MBI5026 output stage, sixteen regulatedcurrent ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of Vfvariations

Features

DriverFeaturesl16 constant-current output channelslConstant output current invariant to load voltage changelExcellent output current accuracy:between channels: <±3% (max.), andbetween ICs: <±6% (max.)lOutput current adjusted through an external resistorlConstant output current range: 5-90 mAlFast response of output current, OE (min.): 200 nsl25MHz clock frequencylSchmitt trigger inputl5V supply voltageCurrent
