Product Summary
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE)\ input can be used to disable the device so that the buses are effectively isolated.
Features
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
Low Power Consumption, 80-μA Max ICC
Typical tpd = 12 ns
Features
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
Low Power Consumption, 80-μA Max ICC
Typical tpd = 12 ns
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

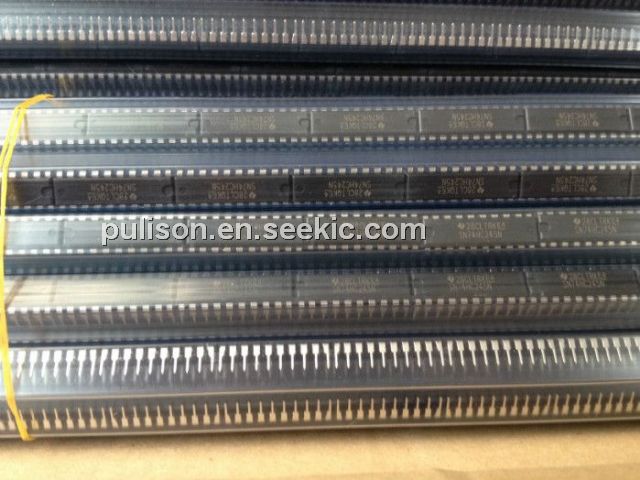

 SN74HC245N |
Texas Instruments |
Bus Transceivers Tri-State Octal Bus |
Data Sheet |
|
|
||||||||||||
|
SN74HC245NE4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74HC245NSR |
Texas Instruments |
Bus Transceivers Tri-State Octal Bus |
Data Sheet |
|
|
||||||||||||
|
SN74HC245NSRE4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74HC245NSRG4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
||||||||||||
|
SN74HC245NSG4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
Negotiable |
|
||||||||||||
