Product Summary

The 17529 is a monolithic dual H-Bridge power IC ideal for portable   electronic applications containing bipolar step motors and/or brush DC-motors   (e.g., cameras and disk drive head positioners).  The 17529 operates from 2.0 V to 6.8 V, with independent control of each   H-Bridge via parallel MCU interface (3.0 V- and 5.0 V-compatible logic). The   device features on-board charge pump, as well as built-in shoot-through   current protection and an undervoltage shutdown function.

Parametrics

Datasheets MPC17529

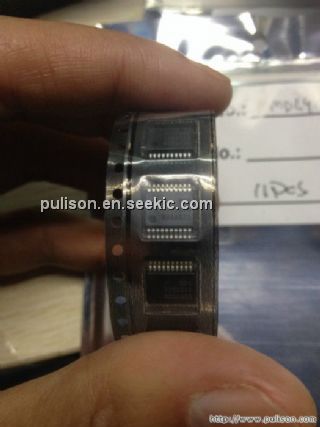

Product Photos 20-SSOP
Standard Package ?  2,940
Category Integrated Circuits (ICs)
Family PMIC - Motor, Bridge Drivers
Series -
Packaging ?  Tube ?
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Full H-Bridge, (2) Dual
Interface Parallel
Applications Battery Powered
Current - Output 700mA
Voltage - Supply 2.7 V ~ 5.6 V
Voltage - Load 2 V ~ 6.8 V
Operating Temperature -20°C ~ 65°C
Mounting Type Surface Mount
Package / Case 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-VMFP

Features

Features  ? Low Total RDS(ON) 0.7 ? (Typ), 1.2 ? (Max) @ 25°C  ? Output Current 0.7 A (DC), 1.4 A (Peak)  ? Shoot-Through Current Protection Circuit  ? 3.0 V/5.0 V CMOS-Compatible Inputs  ? PWM Control Input Frequency up to 200 kHz  ? Built-In Charge Pump Circuit  ? Low Power Consumption  ? Undervoltage Detection and Shutdown Circuit  ? Pb-Free Packaging Designated by Suffix Code EV
