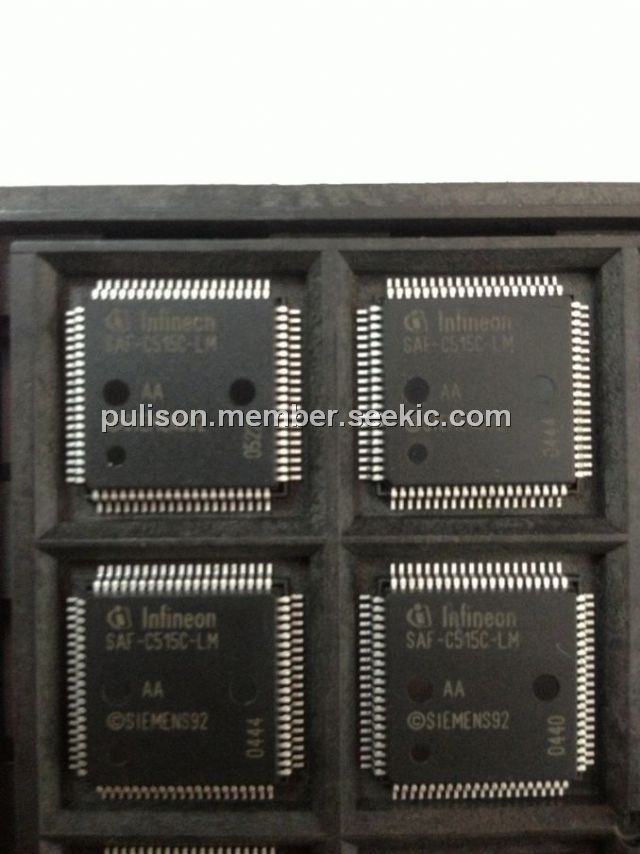

SAF-C515C-LM

8-bit single-chip microcontroller, 6.5V, 10 mA, 1W, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~12.00

PartNumber:: SAF-C515C-LM

Brand:: Infineon Technologies AG - Infineon | Pack: QFP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Leo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-30

From Other Seller

Part Number:SAF-C515C-LM
US $8.00 - 12.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SAF-C515C-LM is an 8-bit single-chip microcontroller. The SAF-C515C-LM provides two basic power saving modes, the idle mode and the power down mode. Additionally, a slow down mode is available. This power saving mode reduces the internal clock rate in normal operating mode and it can be also used for further power reduction in idle mode.

Parametrics

SAF-C515C-LM absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5V; (3)Voltage on any pin with respect to ground (VSS), VIN: -0.5 to VDD+0.5V; (4)Input current on any pin during overload condition, -10 to 10 mA; (5)Absolute sum of all input currents during overload condition, –100 mA to +100mA; (6)Power dissipation, PDISS: 1W.

Features

SAF-C515C-LM features: (1)Full upward compatibility with SAB 80C515A; (2)On-chip program memory (with optional memory protection); (3)256 bytes on-chip RAM; (4)2 Kbytes of on-chip XRAM; (5)Up to 64 Kbytes external data memory; (6)Superset of the 8051 architecture with 8 datapointers; (7)Up to 10 MHz external operating frequency (1 μs instruction cycle time at 6 MHz external clock); (8)On-chip emulation support logic (Enhanced Hooks Technology); (9)Current optimized oscillator circuit and EMI optimized design.
