 3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS

informationThe ’HC138 devices are designed to be used inhigh-performance memory-decoding or data-routingapplicationsrequiringveryshortpropagation delay times. In high-performancememory systems, these decoders can be used tominimize the effects of system decoding. Whenemployed with high-speed memories utilizing afast enable circuit, the delay times of thesedecoders and the enable time of the memory areusually less than the typical access time of thememory. This means that the effective systemdelay introduced by the decoders is negligible

Features

Targeted Specifically for High-SpeedMemory Decoders and Data-TransmissionSystemsD Wide Operating Voltage Range of 2 V to 6 VD Outputs Can Drive Up To 10 LSTTL LoadsD Low Power Consumption, 80-μA Max ICCD Typical tpd = 15 nsD ±4-mA Output Drive at 5 VD Low Input Current of 1 μA MaxD Incorporate Three Enable Inputs to SimplifyCascading and/or Data Receptio

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

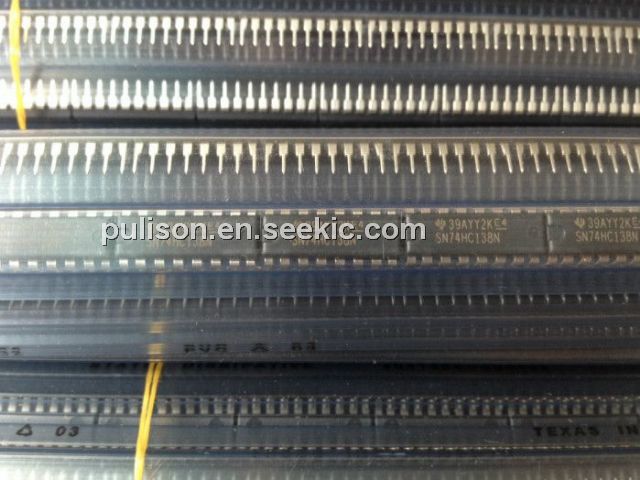

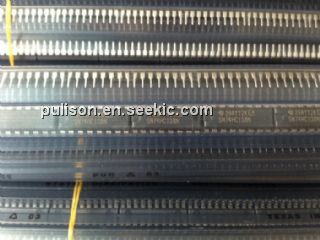

SN74HC138N
SN74HC138N

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers 3-to-8 Line Decoder

Data Sheet

0-1: $0.26
1-25: $0.19
25-100: $0.15
100-250: $0.14
SN74HC138NE4
SN74HC138NE4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.11
SN74HC138NSR
SN74HC138NSR

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers 3-to-8 Line Decoder

Data Sheet

0-1: $0.23
1-25: $0.18
25-100: $0.15
100-250: $0.11
SN74HC138NSRG4
SN74HC138NSRG4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers 3 to 8-Line Decdr/Demltplxer

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.11
