Product Summary
PWM CHOPPER TYPE BIPOLAR STEPPING MOTOR DRIVER
Features
z Single-chip bipolar sinusoidal micro-step stepping motor driver z Output current up to 1.5 A (AVE.) and 2.5 A (PEAK) z PWM chopper-type z Structured by high voltage Bi-CMOS process technology z Forward and reverse rotation are available z 2-, 1-2-, W1-2-, and 2W1-2-phase modes, and one- or two-clock drives can be selected. z Package: HZIP25-P z Input pull-up resistor equipped with RESET pin: R = 100 k? (typ.) z Output monitor available with MO IO (MO) = ±2 mA (MAX.) z Equipped with RESET and ENABLE pins.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

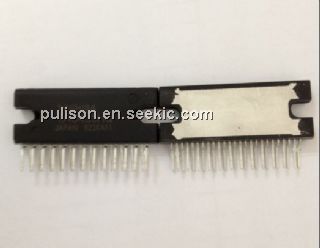

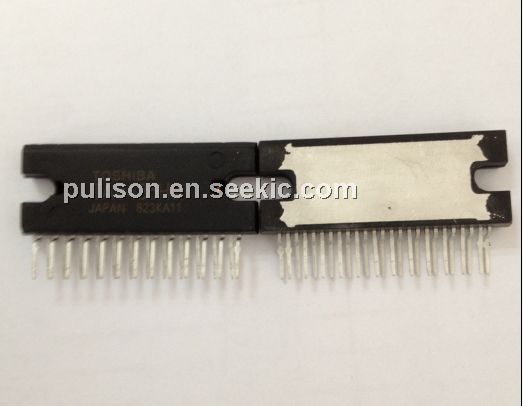

TA8435HQ(5) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Stepping Motor |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
TA84002F |
Other |
Data Sheet |
Negotiable |
|
||||||
TA84002FG(5,EL) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Stepping Motor Driver |
Data Sheet |
Negotiable |
|
|||||
TA84006F/FG |
Other |
Data Sheet |
Negotiable |
|
||||||
TA84006FG(ER,DRY) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Driver |
Data Sheet |
Negotiable |
|
|||||
TA84007FG(EL) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Bridge Driver |
Data Sheet |
Negotiable |
|
|||||
TA84007PQ |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Bridge Driver |
Data Sheet |
Negotiable |
|
