Product Summary
The ADM2587EBRWZ-REEL7 is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2587EBRWZ-REEL7 includes an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.
Parametrics
Absolute maximum ratings: (1)Digital Input Voltage (DE, RE, TxD): -0.5 V to VDD + 0.5 V; (2)Digital Output Voltage (RxD): -0.5 V to VDD + 0.5 V; (3)Driver Output/Receiver Input Voltage: -9 V to +14 V; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -55℃ to +150℃; (6)ESD (Human Body Model) on A, B, Y, and Z pins: ±15 kV; (7)ESD (Human Body Model) on Other Pins: ±2 kV; (8)Lead Temperature Soldering (10 sec): 260℃; (9)Vapor Phase (60 sec): 215℃; (10)Infrared (15 sec): 220℃.
Features
Features: (1)Isolated RS-485/RS-422 transceiver, configurable as half or full duplex; (2)isoPower integrated isolated dc-to-dc converter; (3)±15 kV ESD protection on RS-485 input/output pins; (4)Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E); (5)ADM2582E data rate: 16 Mbps; (6)ADM2587E data rate: 500 kbps; (7)5 V or 3.3 V operation; (8)Connect up to 256 nodes on one bus; (9)Open- and short-circuit, fail-safe receiver inputs; (10)High common-mode transient immunity: >25 kV/μs; (11)Thermal shutdown protection; (12)Safety and regulatory approvals (pending).
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201210302514297.jpg">
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

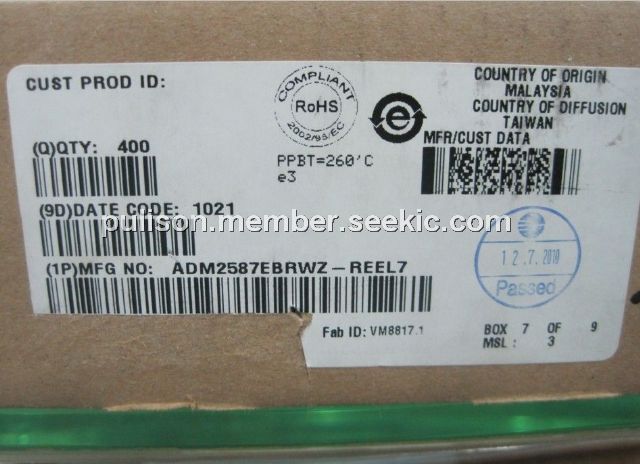

ADM2587EBRWZ-REEL7 |
IC TXRX RS485 ISOLATED 20SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
