Product Summary

FEATURES  Fully Specified for +3 V, +5 V, and 5 V Supplies  Output Swings Rail to Rail  Input Voltage Range Extends 200 mV Below Ground  No Phase Reversal with Inputs 1 V Beyond Supplies  Disable/Power-Down Capability  Low Power of 5.2 mA (26 mW on 5 V)  High Speed and Fast Settling on 5 V:  160 MHz –3 dB Bandwidth (G = +1)  160 V/s Slew Rate  30 ns Settling Time to 0.1%  Good Video Specifications (RL = 150 , G = +2)  Gain Flatness of 0.1 dB to 30 MHz  0.03% Differential Gain Error  0.03 Differential Phase Error  Low Distortion  –69 dBc Worst Harmonic @ 10 MHz  Outstanding Load Drive Capability  Drives 50 mA 0.5 V from Supply Rails  Cap Load Drive of 45 pF

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

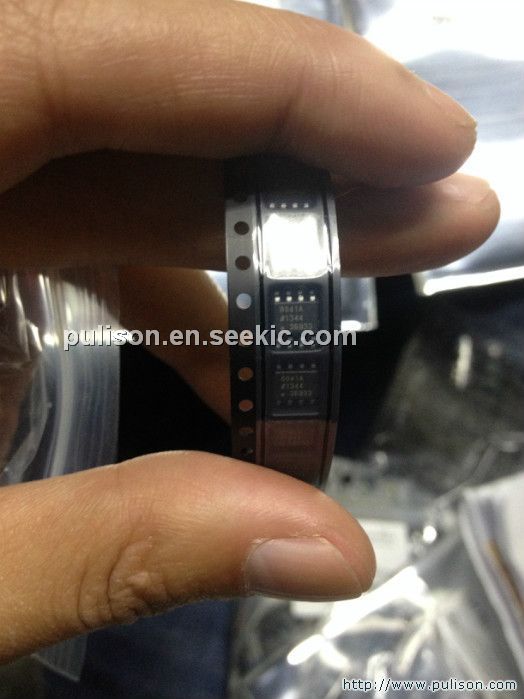

AD8041ARZ
AD8041ARZ


IC OPAMP VF R-R LP LDIST 8SOIC

Data Sheet

0-1: $2.84
1-10: $2.54
10-100: $2.08
100-250: $1.88
250-500: $1.69
500-1000: $1.42
1000-2500: $1.35
AD8041ARZ-REEL
AD8041ARZ-REEL


IC OPAMP VF R-R LP LDIST 8SOIC

Data Sheet

0-2500: $1.35
AD8041ARZ-REEL7
AD8041ARZ-REEL7


IC OPAMP VF R-R LP LDIST 8SOIC

Data Sheet

0-1000: $1.42
