Product Summary

Historical semiconductor price guide (US$ - 1998). From our catalog scanning project.

Parametrics



Technology Family
VCC (Min) (V)
VCC (Max) (V)
Bits (#)
Voltage (Nom) (V)
F @ Nom Voltage (Max) (Mhz)
ICC @ Nom Voltage (Max) (mA)
tpd @ Nom Voltage (Max) (ns)
Output Drive (IOL/IOH) (Max) (mA)
Input Type
Output Type
Schmitt Trigger
Rating
Operating Temperature Range (C)
Pin/Package
Approx. Price (US$)

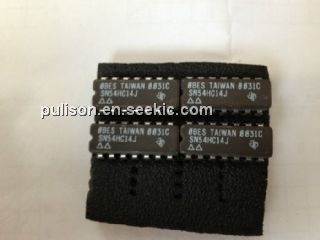

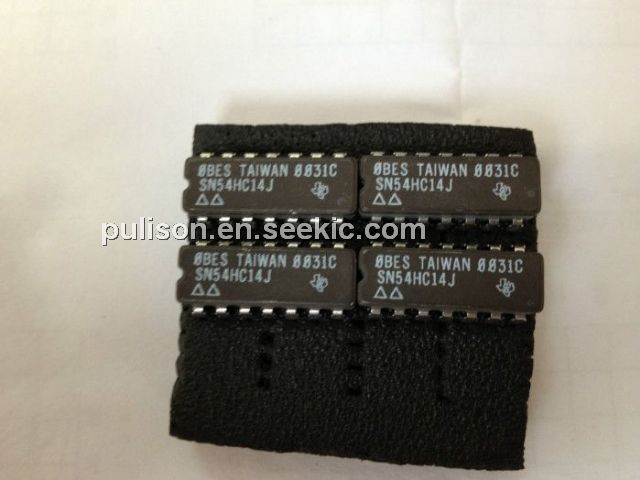

SN54HC14 SN74HC14
HC     HC
2     2
6     6
6     6
  5
  20
  0.02
  31
  -4/4
CMOS     CMOS
CMOS     CMOS
Yes     Yes
Military     Catalog
-55 to 125     -40 to 85
14CDIP
14CFP
20LCCC     14PDIP
14SO
14SOIC
14SSOP
14TSSOP
  0.13 | 1ku
Sample & Buy Sample & Buy

Features

Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up to 10 LSTTL Loads
Low Power Consumption, 20-μA Max ICC
Typical tpd = 11 ns
±4-mA Output Drive at 5 V
