Product Summary

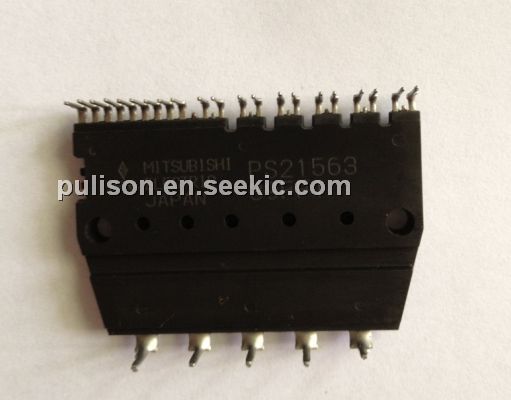

Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272Intellimod? ModuleDual-In-Line IntelligentPower Module10 Amperes/600 VoltsPS215631Description:DIP and Mini DIP-IPMs areintelligent power modules thatintegrate power devices, drivers,and protection circuitry in an ultracompact dual-in-line transfer-moldpackage for use in driving smallthree phase motors. Use of 5thgeneration IGBTs, DIP packaging,and application specific HVICsallow the designer to reduceinverter size and overall designtime

Features

Features:□ Compact Packages□ Single Power Supply□ Integrated HVICs□ Direct Connection to CPU

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PS21563-P
PS21563-P


MOD IPM 600V 10A MINI DIP

Data Sheet

Negotiable
PS21563-SP
PS21563-SP


MOD IPM 600V 10A MINI DIP

Data Sheet

Negotiable
PS21563
PS21563

Other


Data Sheet

Negotiable
